| General information | |
|---|---|
| Assortment |  Netherlands |
| Order code | 2CPX045638R9999 |
| Class name | EC000058 - Empty cabinet |
| Modeling class | MC000255 - Installation cabinet floor standing with door/cover |
| Brand | ABB Componenten |
| Series | TriLine-R |
| Type | 3/10R8 |

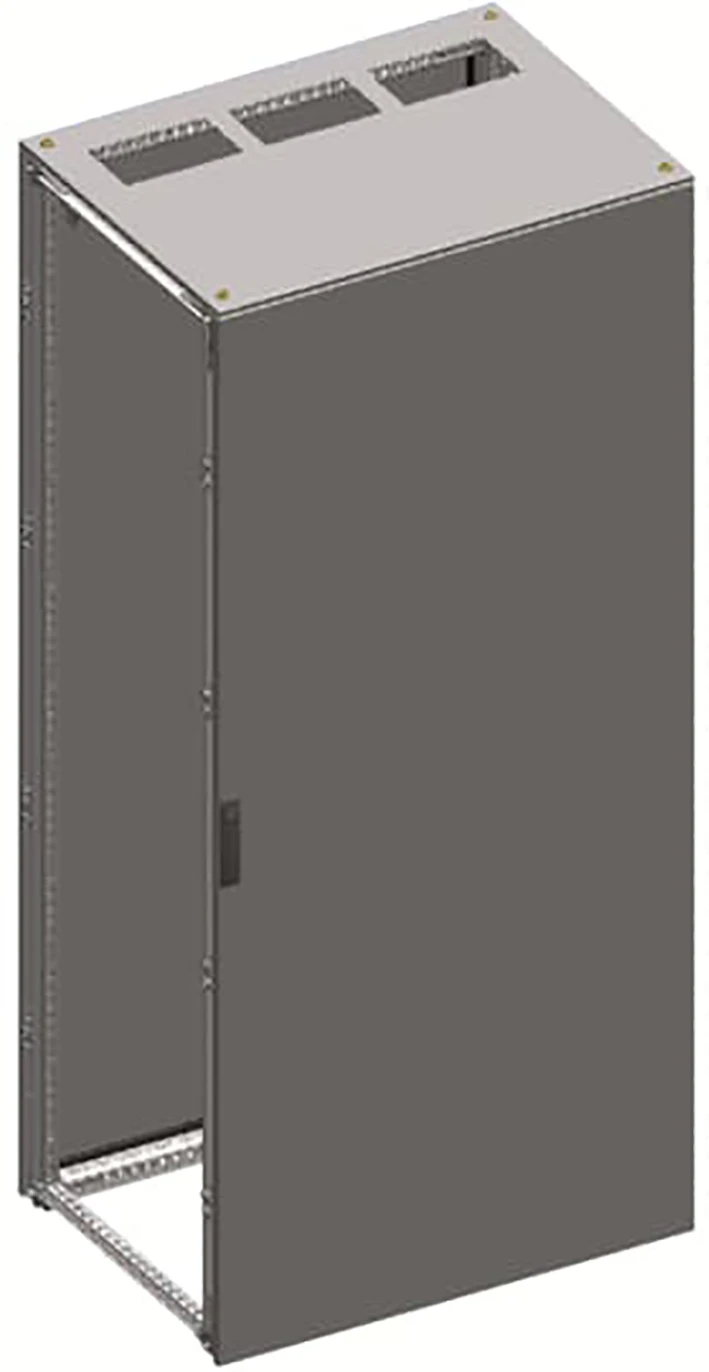

| Description | Switchgear Cabinet |
| Status | Not in stock - Phase-out |
| Estimated delivery time | 16 calendar days |
| GTIN code | 4011617456384 |
| Net weight | 108.77 Kilogram |
| Country of origin | DE |
| Country of production origin | DE |
| Price | |
|---|---|
| Gross price | € 1596.00 per 1 PC |
| Price date | 01-01-2026 |
| Condition group | FQ |
| Logistic data | |
|---|---|
| Product code describes | 1 PC |
| Minimum order quantity | 1 PC |
| Delivery unit | 1 PC |
| Gross weight | 108.77 Kilogram |
| Package dimensions (l x w x h) | 825 x 864 x 2213 Millimeter |
| Statistic code | 85381000 |
| Specifications | |
|---|---|
| Model | Floor standing |
| Type of covering | None |
| Cover model | With notch |
| Type of door | Single |
| Mounting method | Floor installation |
| Transparent cover/door | No |
| With lock | Yes |
| Height (millimetre) | 2213 |
| Width (millimetre) | 864 |
| Depth (millimetre) | 825 |
| Built-in depth (millimetre) | 713 |
| Inner depth (millimetre) | 821 |
| Housing material | Steel |
| Width in number of modular spacings | 36 |
| RAL-number | 7035 |
| Number of modules | 504 |
| Number of rows | 14 |
| Degree of protection (IP) | Other |
| Number of openings for flange plates | 3 |
| Extension possible | Yes |
| Number of conduit inlets | 147 |
| Surface protection | Powder coating |
| With mounting plate | No |
| Protection class | I |
| Suitable for outdoor use | No |
| Impact strength | IK10 |
| Circuit integrity | None |
| Colour | Grey |
| Housing material quality | Other |
| Type of coating | Other |
| Modeling class specifications |
Open dimensional drawing [PDF]
|
||||
|---|---|---|---|---|---|
| Feature | Port | Value | Drawing code | ||
| Mounting method | 0 | Floor installation | |||
| Height 1 (millimetre) | 0 | 0 | H1 | ||
| Width (millimetre) | 0 | 864 | W | ||
| Width cable entry 1 (millimetre) | 0 | 275 | Wc1 | ||
| Width cable entry 2 (millimetre) | 0 | 800 | Wc2 | ||
| Width door 1 (millimetre) | 0 | - | Wd1 | ||
| Width door 2 (millimetre) | 0 | 864 | Wd2 | ||
| Type of covering | 0 | Door | |||
| Type of door | 0 | Single | |||
| Depth (millimetre) | 0 | 825 | D | ||
| Depth 1 (millimetre) | 0 | 20 | D1 | ||
| Depth 2 (millimetre) | 0 | 0 | D2 | ||
| Depth cable entry 1 (millimetre) | 0 | 100 | Dc1 | ||
| Depth cable entry 2 (millimetre) | 0 | 300 | Dc2 | ||
| Height (millimetre) | 0 | 2213 | H | ||
