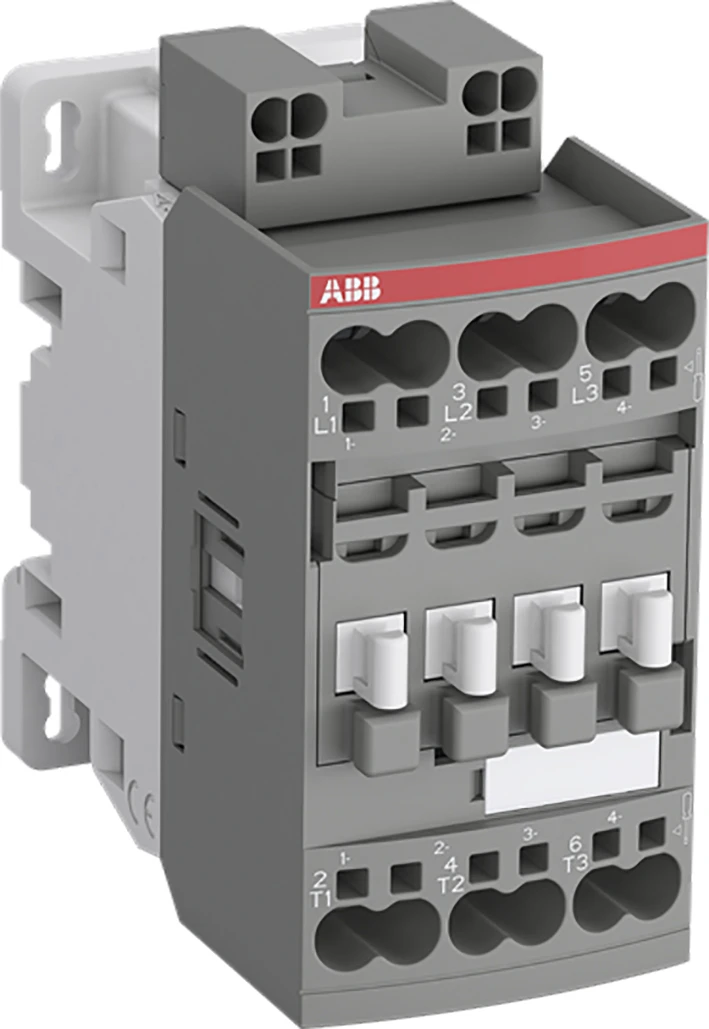

AF 38Z-30-00K-20 12-20VDC - 1SBL296005R2000

Magneetschakelaar Magneetschakelaar / AF Magneetschakelaar 18,5kW 400V 3-polig Spoelcode: 11 Breed spanningsbereik Laag spoelverbruik , direct PLC aansturing Push-in Springtechniek

AF 38Z-30-00K-20 12-20VDC

1SBL296005R2000



Algemene informatie
Assortiment  Nederland
Bestelnummer 1SBL296005R2000
ETIM Productklasse EC000066 - Magneetschakelaar
Merknaam ABB Componenten
Serie/programma Magneetschakelaar / AF
Type AF 38Z-30-00K-20 12-20VDC
Omschrijving Magneetschakelaar 18,5kW 400V 3-polig Spoelcode: 11 Breed spanningsbereik Laag spoelverbruik , direct PLC aansturing Push-in Springtechniek
Status Niet voorraadhoudend - Courant
Indicatieve levertijd 18 kalenderdagen
GTIN code 3471523156807
Netto gewicht 0,36 Kilogram
Land van herkomst DE
Prijs
Bruto prijs € 344,00 per 1 PC
Ingangsdatum 01-01-2025
Conditiegroep DC
Logistieke gegevens
Artikelnummer beschrijft 1 PC
Minimum afname 1 PC
Stapgrootte afname 1 PC
Bruto gewicht 0,36 Kilogram
Afmetingen verpakking (l x b x h) 86 x 93 x 45 Millimeter
CBS nummer 85364900
Specificaties
Nom. stuurspanning bij AC 50 Hz (volt) 12 - 20
Nom. stuurspanning bij AC 60 Hz (volt) 12 - 20
Nom. stuurspanning bij DC (volt) 12 - 20
Type stuurspanning DC
Nom. bedrijfsstroom Ie bij AC-1, 400 V (ampère) 50
Nom. bedrijfsstroom Ie bij AC-3, 400 V (ampère) 38
Nom. vermogen bij AC-3, 400 V (kilowatt) 18.5
Modulaire uitvoering (voor railmontage) Nee
Aantal hulpcontacten als maakcontact 0
Aantal hulpcontacten als verbreekcontact 0
Aansluitwijze hoofdstroomcircuit Veerklemaansluiting
Aantal hoofdcontacten als verbreekcontact 0
Aantal hoofdcontacten als maakcontact 3
Nom. vermogen NEMA (kilowatt) 18.6425
Bedrijfsspanning bij AC 50 Hz (volt) 690 - 690
Bedrijfsspanning bij AC 60 Hz (volt) 690 - 690
Breedte (millimeter) 45
Hoogte (millimeter) 92.3
Diepte (millimeter) 86
